UA-9800

product manual:
ACT automatic frequency lock-up function, as long as the search is not interfered with by the frequency, the receiver immediately allows the transmitter to automatically lock the receiver to the same exact operating frequency, never produce errors and failures.
Microcomputer CPU control, PLL phase-locked loop frequency synthesis technology, predictive diversity technology, audio compression and expansion processing, automatic volume control

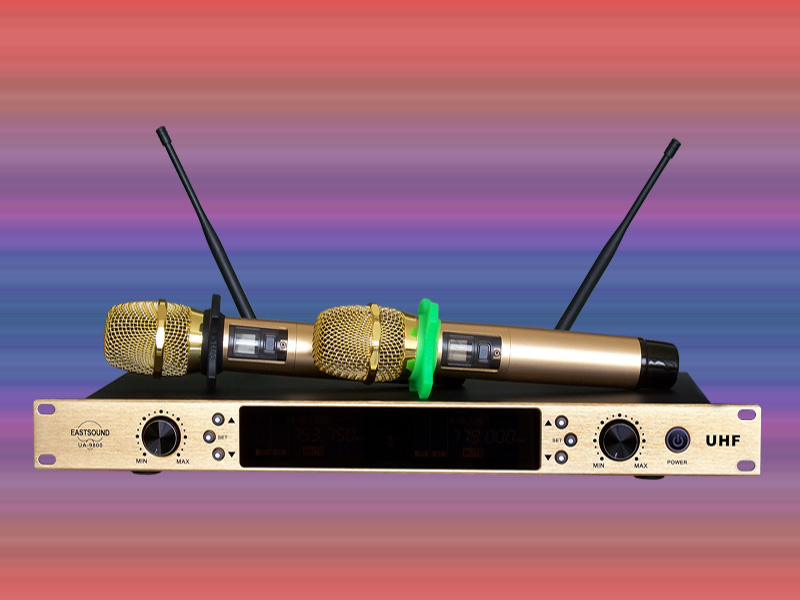

Large-screen dynamic LCD display, can dynamically display RF/AF level, 200 channel selection, panel can be set to work Julu, display mode, panel lock function

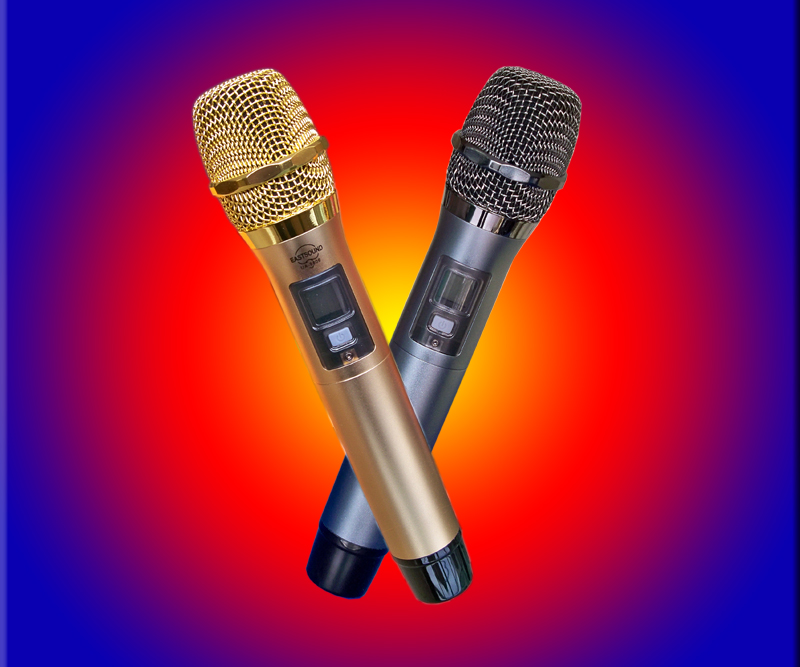

2 microphones (handle collar optional), unique anti-shock device
system:
Frequency range: 740 ~ 790MHZ Modulation: FM (PLL) Frequency: ± 25KHZ / & # 8225; 48KHZ
Frequency stability: ±15ppm Frequency response: 60HZ~18KHZ Signal to noise ratio: 3110db(A)
T.H.D:≤1% Working Temperature: -10°C~+55°C
Receiver:

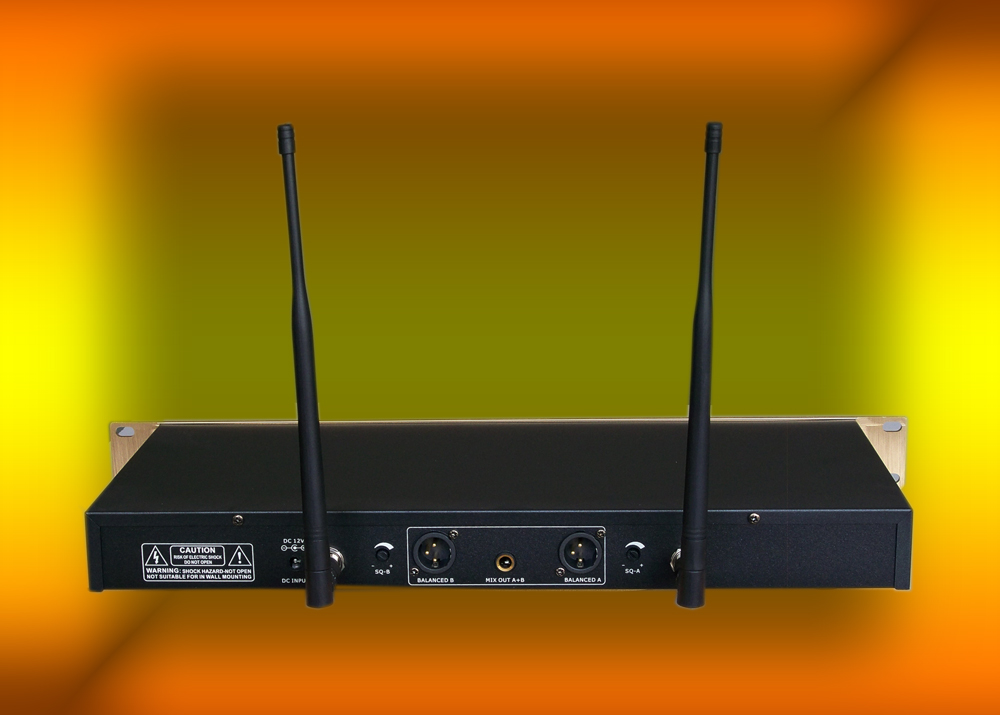

Received form: Non-diversity receiving Sensitivity: 3uv (52db S/N) Audio output level [Balanced output: +10db (XLR), unbalanced output: +4db (1/4, 6.3MM jack socket)]
Adjacent channel interference ratio: ≥80db
Mirror interference ratio: ≥80db Current consumption: 300~600MA Harmonic suppression: >50db
