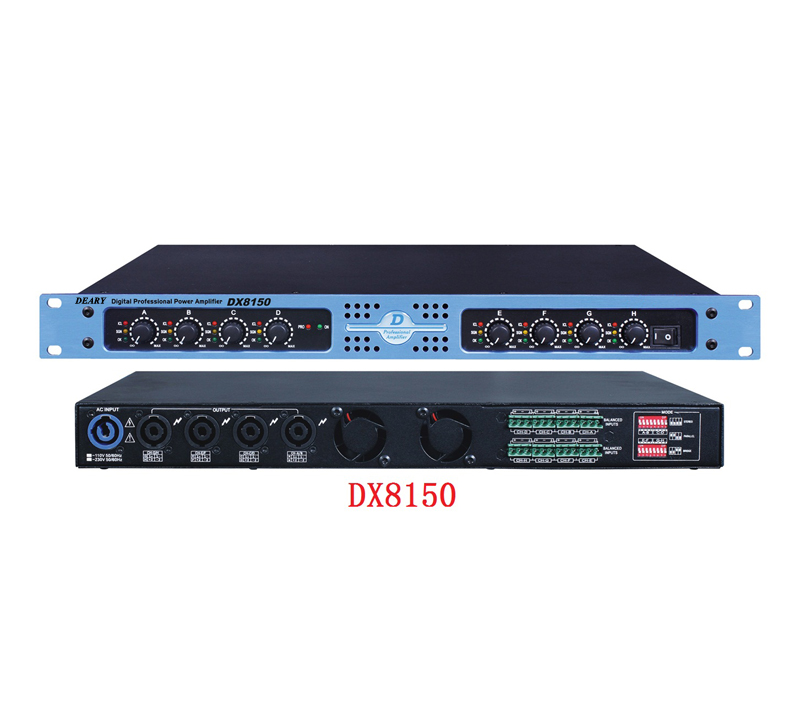

DX8100 DX8150 Specifications/Specification

Output Circuit Type complementary bipolar output with multi-step high efficiency circuit
                                                                           DX8100 DX8150
Output Power in watts 100W 150W
FTC : 30 Hz to 18kHz 1% THD 8 ohms 100W 150W
Both channels driven 4 ohms 240W 400W
Bridged Mode at 1% THD 8 ohms,1kHz 480W 800W
Input Sensitivity for rated power into 8 onms 1.25Vrms 1.25Vrms
Input Impedance 20 k ohm balanced, 10 k ohm unbalanced
Voltage Gain 64x(36 dB) for 8 ohm load
Dynamic Headroom at 4 ohms 2dB
Distortion, SMPTE < 0.02%
Frequency response at 1 watt 30 Hz to 20 Khz, 8 ohms, LF Filter bypassed: +0, -3 dB
Noise(unweighted) 100 dB below rated output from 30 Hz to 20 kHz, 8 ohm load
Controls Front Panel- AC power switch, CHA Gain control, CHB Gain control,
                               Clip Limiter on/off controls for each channel and switches for
                              Stereo or Bridge Mode. breaker for channel.
Connectors Inputs: XLR female, TRS(1/4-inch); Outputs: Speakon outputs
Wehting Steel chassis: 4.50kg
Dimensions 19.0”wide x 2”(1U) high x 9.21” deep (483x44x234mm)
